NOTE: The intake camshaft rear bearing cap must be secured within 10 minutes of gasket maker application. If the bearing cap is not secured within 10 minutes, the gasket maker must be removed.

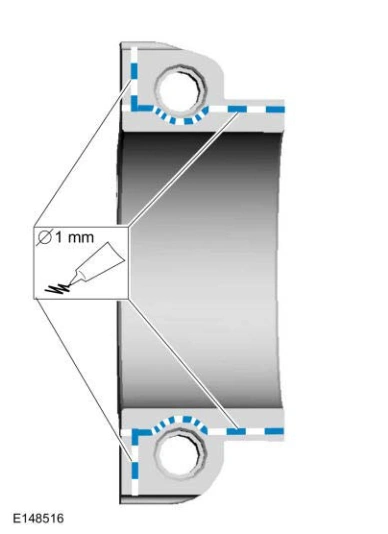

17. Apply 1 mm (0.039 in) beads of gasket maker to the intake rear camshaft bearing cap mating surface as shown in illustration.
Material
: Gasket Maker / TA-16 (WSK-M2G348-A5)
NOTE: Wipe off any excess gasket maker from the vacuum pump sealing surface
