Crankshaft Rear Seal — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4613

Cleaning and Preparation .

Use the General Equipment: Plastic Scraper

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

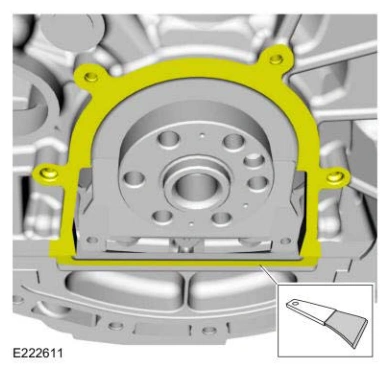

Crankshaft Rear Seal — original illustration 1, reference 4613Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > CRANKSHAFT REAR SEAL > INSTALLATION

NOTE: If the crankshaft rear seal is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

1. Apply a 3 mm (0.118 in) bead of silicone to the oil pan surface and a 5 mm (0.196 in) bead at the T-joints.

Material

: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
