Crankshaft Rear Seal — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4615

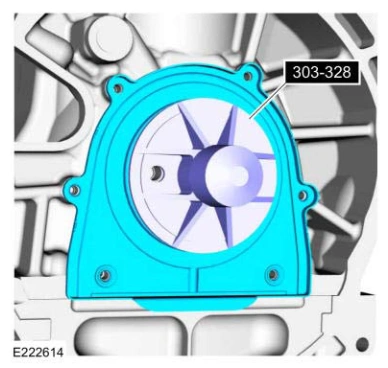

Crankshaft Rear Seal — original illustration 1, reference 4615Original colors & callouts · Select to enlarge

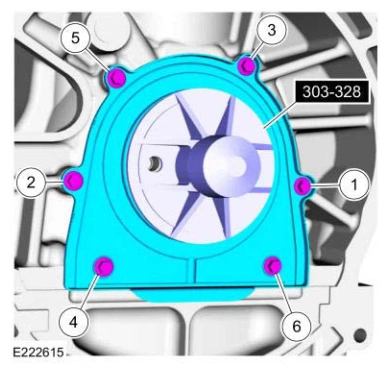

4. Install the bolts and tighten in sequence shown in illustration. Remove Special Service Tool: 303-328 (T88P-6701-B1) Replacer, Rear Seal.

Torque

: 89 lb.in (10 Nm)

Crankshaft Rear Seal — original illustration 2, reference 4615Original colors & callouts · Select to enlarge

5. Drain engine oil and install drain plug.

Use the General Equipment: Oil Drain Equipment

Torque

: 20 lb.ft (27 Nm)
