Cylinder Head — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4617

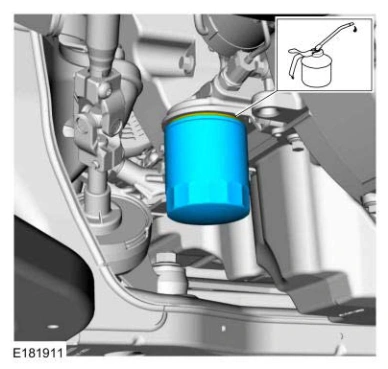

Cylinder Head — original illustration 1, reference 4617Original colors & callouts · Select to enlarge

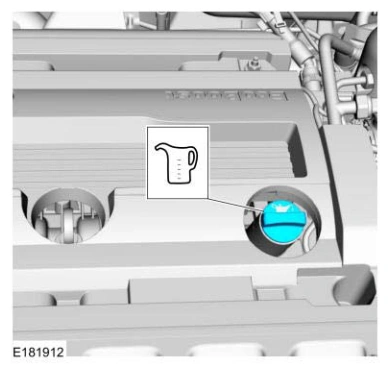

8. Fill the engine with clean engine oil. Refer to: Specifications .

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Cylinder Head — original illustration 2, reference 4617Original colors & callouts · Select to enlarge

9. Install the flexplate or flywheel. Refer to: Flexplate . Refer to: Flywheel .

REMOVAL AND INSTALLATION > CYLINDER HEAD

Special Tool(s) / General Equipment

Oil Drain Equipment

Hose Clamp Remover/Installer
