Crankshaft Rear Seal — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,614HTML edition
← Chapter contentsManual collection
Crankshaft Rear Seal — original illustration 1, reference 4614Original colors & callouts · Select to enlarge

2.

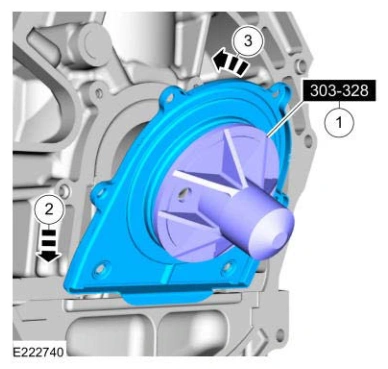

1. Install the crankshaft rear main oil seal installer.

Use Special Service Tool: 303-328 (T88P-6701-B1) Replacer, Rear Seal.

2. Install the crankshaft rear seal retainer at an angle above the oil pan flange to avoid scraping off the sealer.

3. Tilt the seal retainer up and onto the rear of the cylinder block.

Crankshaft Rear Seal — original illustration 2, reference 4614Original colors & callouts · Select to enlarge

3. Using the special tool, seat the crankshaft rear seal.

Use Special Service Tool:303-328 (T88P-6701-B1) Replacer, Rear Seal.
