Materials
Name | Specification |
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) XO-5W30-QSP (U.S.) | WSS-M2C946-A |
Motorcraft® Silicone Gasket Remover ZC-30-A | - |
Motorcraft® Metal Surface Prep ZC-31-B | - |
Silicone Gasket and Sealant TA-30 | WSE-M4G323-A4 |
Metal Brake Parts Cleaner (U.S.) PM-4-A, PM-4-B (U.S.) | - |
REMOVAL AND INSTALLATION > CRANKSHAFT REAR SEAL > REMOVAL
1. Remove the flexplate or flywheel. Refer to: Flexplate . Refer to: Flywheel .

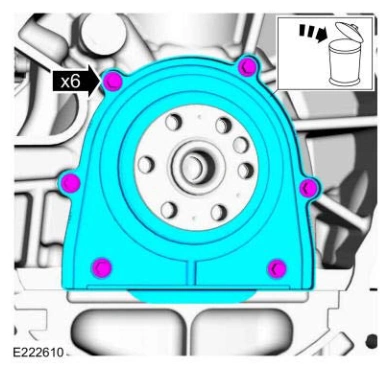

2. Remove the bolts and the crankshaft rear seal, discard the crankshaft rear seal.
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.
3. Clean and inspect the oil pan and cylinder block mating surfaces. Refer to: RTV Sealing Surface
