of the cylinder head and camshaft cap.

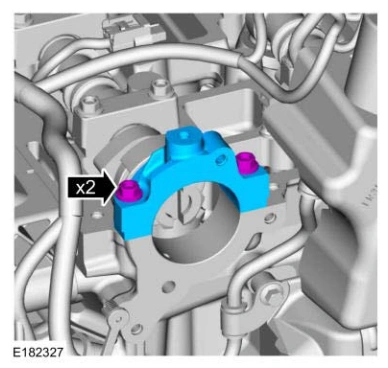

18. Install the rear intake camshaft cap and the bolts.

Torque:

Stage 1: 62 lb.in (7 Nm)

Stage 2: 142 lb.in (16 Nm)

Crankshaft Rear Seal — original illustration 1, reference 4611Original colors & callouts · Select to enlarge

19. Install the following items:

Refer to: Brake Vacuum Pump - 2.3L EcoBoost (201kW/273PS) .

Refer to: Valve Cover .

Refer to: ACCESSORY DRIVE BELT - 2.3L EcoBoost (231kW/314PS).

Refer to: AIR CLEANER OUTLET PIPE - 2.3L EcoBoost (231kW/314PS).

20. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.

REMOVAL AND INSTALLATION > CRANKSHAFT REAR SEAL

Special Tool(s) / General Equipment

Crankshaft Rear Seal — original illustration 2, reference 4611Original colors & callouts · Select to enlarge

303-328 (T88P-6701-B1) Replacer, Rear Seal TKIT-1988-F TKIT-1988-FLM TKIT-1988-LM
