Air Cleaner Outlet Pipe — Removal — Intake Air Distribution And Filtering - 2.3L EcoBoost (231kW & 314PS) · Reference 6253

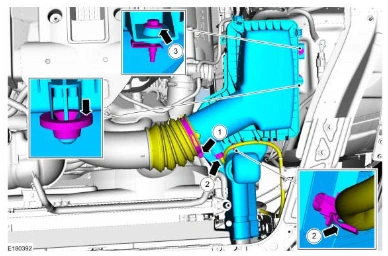

1. Loosen the clamp, position aside the air outlet pipe.

Torque

: 48 lb.in (5.4 Nm)

2. Detach the wiring harness retainers and disconnect the IAT sensor electrical connectors.

3. Remove the bolt.

Torque

: 71 lb.in (8 Nm)

4. Remove the air cleaner assembly.

Air Cleaner Outlet Pipe — original illustration 1, reference 6253Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > AIR CLEANER > INSTALLATION

1. To install, reverse the removal procedure.

REMOVAL AND INSTALLATION > AIR CLEANER OUTLET PIPE > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.
