Charge Air Cooler (Cac) — Installation

Intake Air Distribution And Filtering - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 6,256HTML edition
← Chapter contentsManual collection

: 48 lb.in (5.4 Nm)

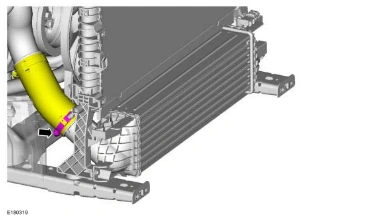

Charge Air Cooler (Cac) — original illustration 1, reference 6256Original colors & callouts · Select to enlarge

6. Loosen the clamp and disconnect the CAC outlet tube.

Torque

: 48 lb.in (5.4 Nm)

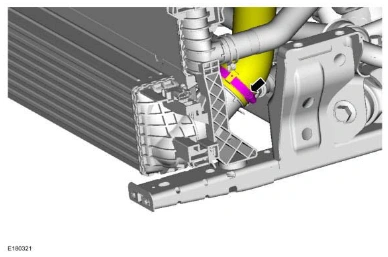

Charge Air Cooler (Cac) — original illustration 2, reference 6256Original colors & callouts · Select to enlarge

7. Remove the bolt and CAC in a sequence as shown in illustration.

Torque

: 55 lb.in (6.2 Nm)

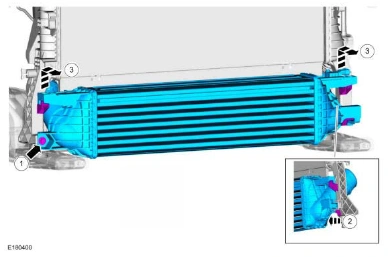

Charge Air Cooler (Cac) — original illustration 3, reference 6256Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > CHARGE AIR COOLER (CAC) > INSTALLATION

Ford_Mustang_all_2015-2017.pdf · source reference 6256
