Removal

NOTE: When installing the CAC tubes, thoroughly clean the joint clamp areas using metal brake parts cleaner.

1. To install, reverse the removal procedure.

REMOVAL AND INSTALLATION > CHARGE AIR COOLER (CAC) INTAKE PIPE >

NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.

NOTE: Removal steps in the procedure may contain installation details.

Charge Air Cooler (CAC) Intake Pipe - Upper

1. Disconnect the electrical connector and detach the wire harness retainers.

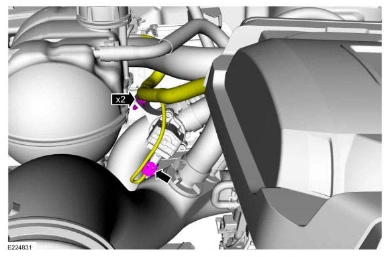

Removal — original illustration 1, reference 6257Original colors & callouts · Select to enlarge

2. Disconnect and position aside the bypass tube.

Ford_Mustang_all_2015-2017.pdf · source reference 6257
