Removal — Intake Air Distribution And Filtering - 2.3L EcoBoost (231kW & 314PS) · Reference 6259

6. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

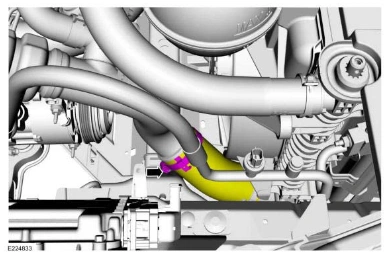

7. Loosen the clamp and position aside the lower intake pipe.

Torque

: 44 lb.in (5 Nm)

Removal — original illustration 1, reference 6259Original colors & callouts · Select to enlarge

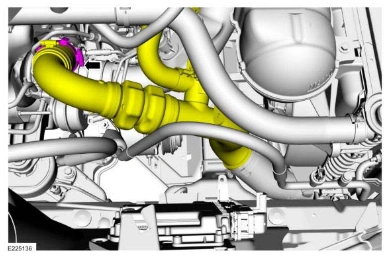

8. Loosen the clamp and position aside the upper intake pipe.

Torque

: 44 lb.in (5 Nm)

Removal — original illustration 2, reference 6259Original colors & callouts · Select to enlarge

NOTE: If equipped.

9. Remove the underbody shield.

Ford_Mustang_all_2015-2017.pdf · source reference 6259
