Removal — Intake Air Distribution And Filtering - 2.3L EcoBoost (231kW & 314PS) · Reference 6260

Removal — original illustration 1, reference 6260Original colors & callouts · Select to enlarge

NOTE: If equipped.

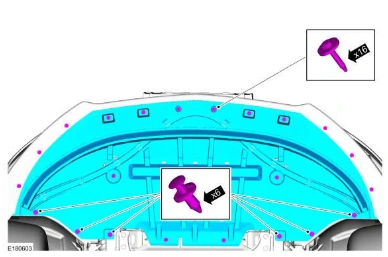

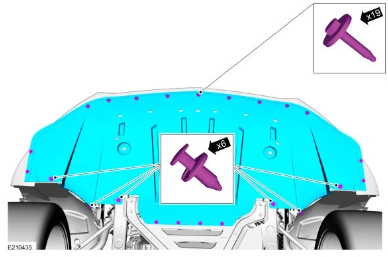

10. Remove the underbody shield.

Removal — original illustration 2, reference 6260Original colors & callouts · Select to enlarge

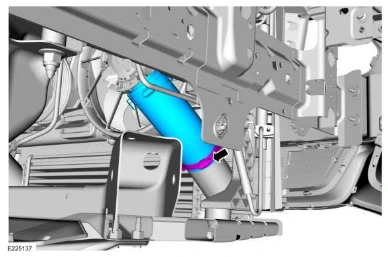

11. Loosen the clamp and remove the lower intake pipe.

Torque

: 44 lb.in (5 Nm)

Removal — original illustration 3, reference 6260Original colors & callouts · Select to enlarge

12. Clean, inspect, and cover all open ports.
