Removal

Intake Air Distribution And Filtering - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 6,261HTML edition
← Chapter contentsManual collection

REMOVAL AND INSTALLATION > CHARGE AIR COOLER (CAC) INTAKE PIPE >

INSTALLATION

1. To install, reverse the removal procedure.

REMOVAL AND INSTALLATION > CHARGE AIR COOLER (CAC) OUTLET PIPE >

REMOVAL

NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.

NOTE: Removal steps in the procedure may contain installation details.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

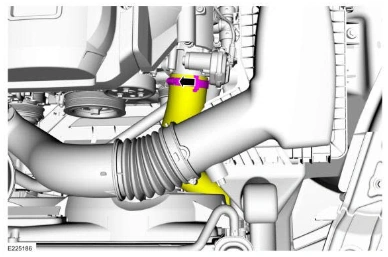

2. Loosen the clamp and disconnect the outlet pipe.

Torque

: 44 lb.in (5 Nm)

Removal — original illustration 1, reference 6261Original colors & callouts · Select to enlarge

NOTE: If equipped.

3. Remove the underbody shield.
