Removal — Intake Air Distribution And Filtering - 2.3L EcoBoost (231kW & 314PS) · Reference 6258

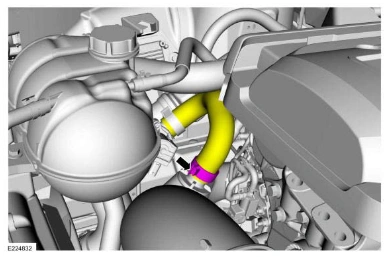

Removal — original illustration 1, reference 6258Original colors & callouts · Select to enlarge

3. Loosen the clamp and position aside the lower intake pipe.

Torque

: 44 lb.in (5 Nm)

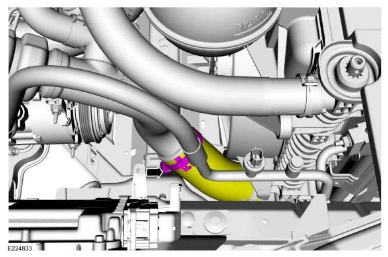

Removal — original illustration 2, reference 6258Original colors & callouts · Select to enlarge

4. Loosen the clamp and remove the upper intake pipe.

Torque

: 44 lb.in (5 Nm)

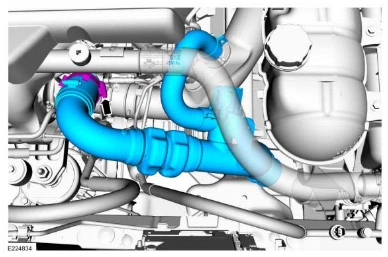

Removal — original illustration 3, reference 6258Original colors & callouts · Select to enlarge

5. Clean, inspect, and cover all open ports.

Charge Air Cooler (CAC) Intake Pipe - Lower
