Removal — Intake Air Distribution And Filtering - 2.3L EcoBoost (231kW & 314PS) · Reference 6262

Removal — original illustration 1, reference 6262Original colors & callouts · Select to enlarge

NOTE: If equipped.

4. Remove the underbody shield.

Removal — original illustration 2, reference 6262Original colors & callouts · Select to enlarge

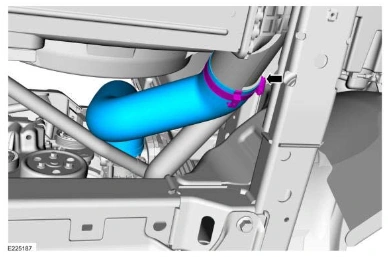

5. Loosen the clamp and remove the outlet pipe.

Torque

: 44 lb.in (5 Nm)

Removal — original illustration 3, reference 6262Original colors & callouts · Select to enlarge

6. Clean, inspect, and cover all open ports.
