Air Cleaner Outlet Pipe — Installation — Intake Air Distribution And Filtering - 2.3L EcoBoost (231kW & 314PS) · Reference 6254

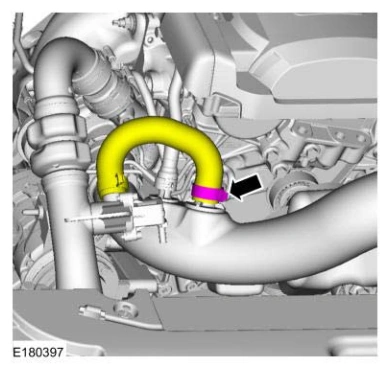

Loosen the clamp, disconnect and position aside the CAC bypass valve inlet tube from the air cleaner outlet pipe.

Air Cleaner Outlet Pipe — original illustration 1, reference 6254Original colors & callouts · Select to enlarge

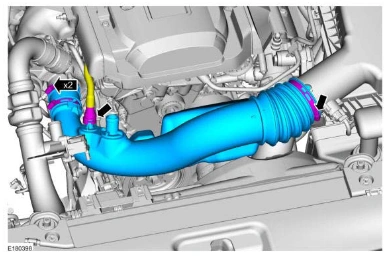

1. Disconnect and position aside the crankcase ventilation tube.

2. Loosen the 3 clamps and remove the air cleaner outlet pipe.

Torque

: 48 lb.in (5.4 Nm)

Air Cleaner Outlet Pipe — original illustration 2, reference 6254Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > AIR CLEANER OUTLET PIPE > INSTALLATION

1. To install, reverse the removal procedure.

Ford_Mustang_all_2015-2017.pdf · source reference 6254
