Cylinder Head — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4620

9. Disconnect and position the coolant tube aside.

Use the General Equipment: Hose Clamp Remover/Installer

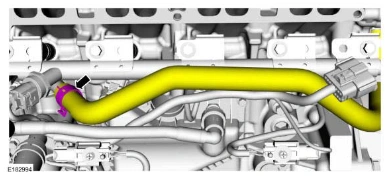

Cylinder Head — original illustration 1, reference 4620Original colors & callouts · Select to enlarge

10. Disconnect the fuel injector and the FRP sensor electrical connectors.

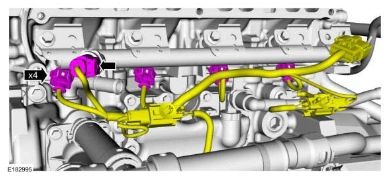

Cylinder Head — original illustration 2, reference 4620Original colors & callouts · Select to enlarge

11. Disconnect the ECT sensor electrical connector from the back of the engine.

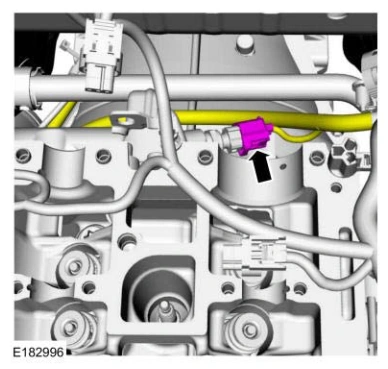

Cylinder Head — original illustration 3, reference 4620Original colors & callouts · Select to enlarge

12. Disconnect the crankcase vent tube sensor electrical connector and wire harness retainer.

Detach the crankcase vent tube retainer and remove.
