Cylinder Head — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,622HTML edition
← Chapter contentsManual collection
Cylinder Head — original illustration 1, reference 4622Original colors & callouts · Select to enlarge

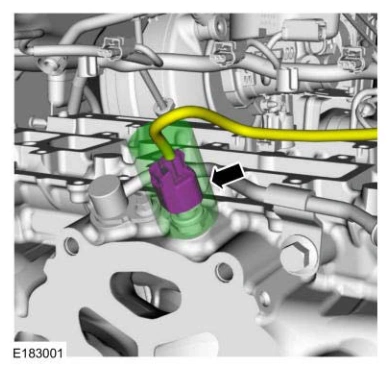

16. Slide the insulator up and disconnect the CHT sensor electrical connector.

Cylinder Head — original illustration 2, reference 4622Original colors & callouts · Select to enlarge

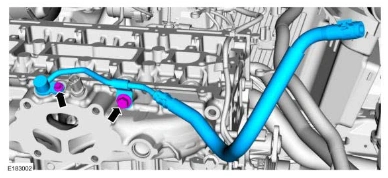

17. Remove the bolts and the coolant tube.

Cylinder Head — original illustration 3, reference 4622Original colors & callouts · Select to enlarge

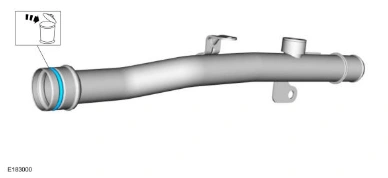

18. Inspect the coolant tube O-ring seal and replace if necessary.
