Cylinder Head — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,624HTML edition
← Chapter contentsManual collection

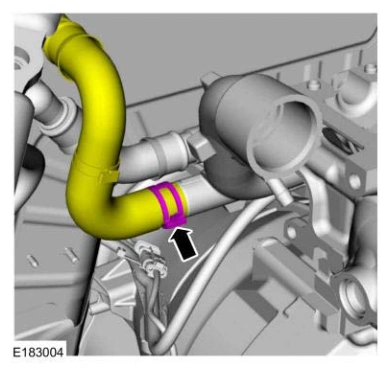

Cylinder Head — original illustration 1, reference 4624Original colors & callouts · Select to enlarge

21. Remove the bolts and the cylinder head.

Discard the bolts.

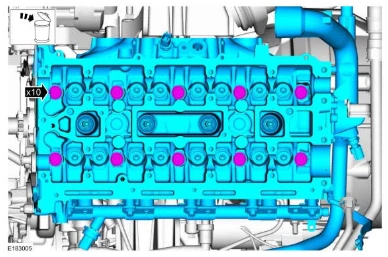

Cylinder Head — original illustration 2, reference 4624Original colors & callouts · Select to enlarge

22. Remove and discard the cylinder head gasket.

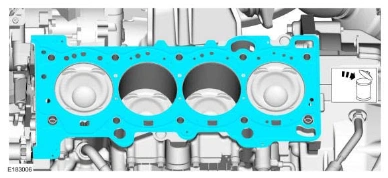

Cylinder Head — original illustration 3, reference 4624Original colors & callouts · Select to enlarge

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
