Cylinder Head — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,627HTML edition
← Chapter contentsManual collection

Torque

: 177 lb.in (20 Nm)

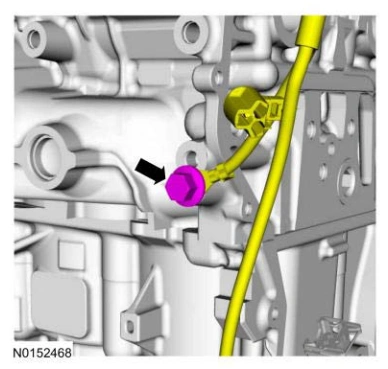

Cylinder Head — original illustration 1, reference 4627Original colors & callouts · Select to enlarge

5. Lubricate the coolant tube O-ring seal with clean engine coolant.

Material

: Motorcraft® Orange Antifreeze/Coolant Prediluted (U.S.) / VC-3DIL-B (U.S.) (WSS-M97B44-D2)

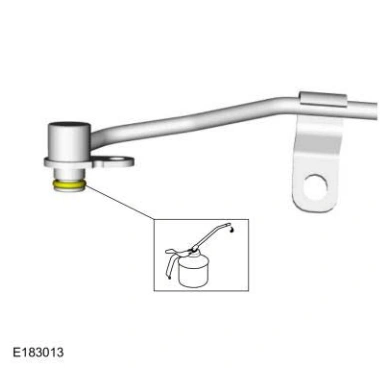

Cylinder Head — original illustration 2, reference 4627Original colors & callouts · Select to enlarge

6.

NOTE: The coolant tube must be fully seated prior to tighten the bolt.

1. Install the coolant tube and the bolt.

Torque

Ford_Mustang_all_2015-2017.pdf · source reference 4627
