Cylinder Head — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,628HTML edition
← Chapter contentsManual collection

: 97 lb.in (11 Nm)

2. Install the coolant tube retainer bolt.

Torque

: 22 lb.ft (30 Nm)

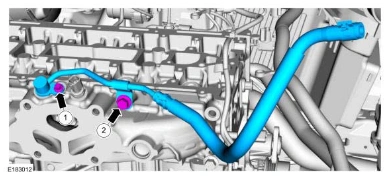

Cylinder Head — original illustration 1, reference 4628Original colors & callouts · Select to enlarge

7. Connect the CHT sensor electrical connector and slide the insulator down.

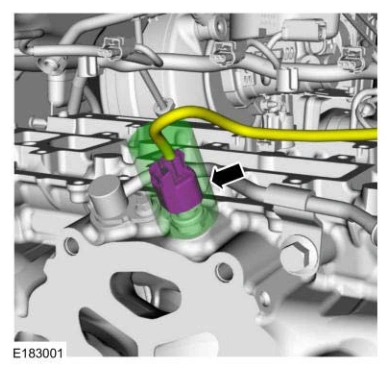

Cylinder Head — original illustration 2, reference 4628Original colors & callouts · Select to enlarge

8. Lubricate the new coolant tube O-ring seal with clean engine coolant.

Material

: Motorcraft® Orange Antifreeze/Coolant Prediluted (U.S.) / VC-3DIL-B (U.S.) (WSS-M97B44-D2)

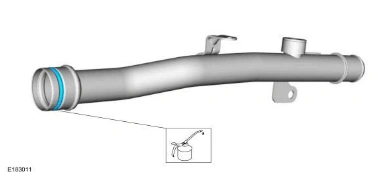

Cylinder Head — original illustration 3, reference 4628Original colors & callouts · Select to enlarge

9.
