Cylinder Head — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4631

15. Install the fuel rail insulator shield.

Attach the wiring harness retainers.

Connect and attach the fuel rail electrical connector.

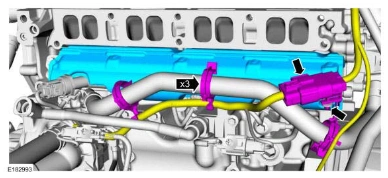

Cylinder Head — original illustration 1, reference 4631Original colors & callouts · Select to enlarge

16. Install the valve tappets in their original position.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

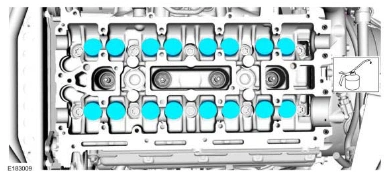

Cylinder Head — original illustration 2, reference 4631Original colors & callouts · Select to enlarge

17. Install the following items:

Refer to: Camshafts .

Refer to: Intake Manifold .

Refer to: Turbocharger .

18. Drain engine oil and install drain plug.

Use the General Equipment: Oil Drain Equipment

Torque

: 20 lb.ft (27 Nm)
