Cylinder Head — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4630

Cylinder Head — original illustration 1, reference 4630Original colors & callouts · Select to enlarge

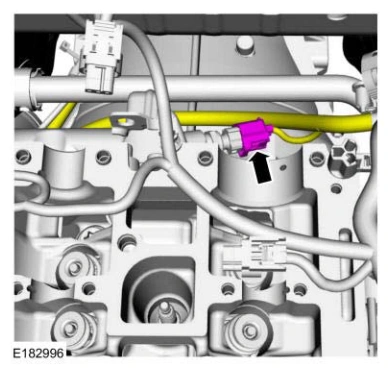

12. Connect the ECT sensor electrical connector.

Cylinder Head — original illustration 2, reference 4630Original colors & callouts · Select to enlarge

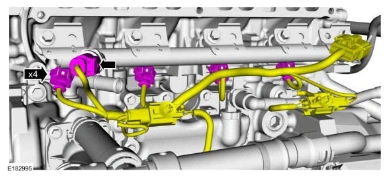

13. Connect the fuel injector and the FRP sensor electrical connectors.

Cylinder Head — original illustration 3, reference 4630Original colors & callouts · Select to enlarge

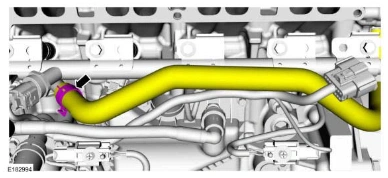

14. Position and connect the coolant tube.

Use the General Equipment: Hose Clamp Remover/Installer

Cylinder Head — original illustration 4, reference 4630Original colors & callouts · Select to enlarge
