Cylinder Head — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,629HTML edition
← Chapter contentsManual collection

1. Install the coolant tube coolant outlet.

2. Install the bolt.

Torque

: 89 lb.in (10 Nm)

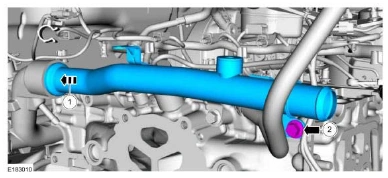

Cylinder Head — original illustration 1, reference 4629Original colors & callouts · Select to enlarge

10. Connect the coolant by-pass hose to the degas bottle.

Use the General Equipment: Hose Clamp Remover/Installer

Connect the upper radiator hose to the coolant outlet tube.

Use the General Equipment: Hose Clamp Remover/Installer

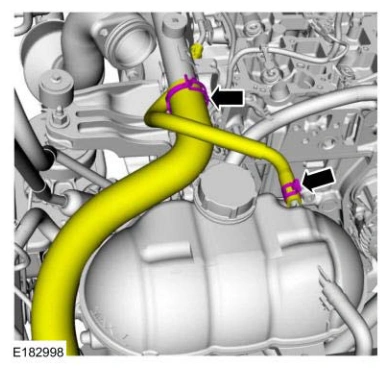

Cylinder Head — original illustration 2, reference 4629Original colors & callouts · Select to enlarge

11. Install the crankcase vent tube and retainer.

Connect the crankcase vent tube sensor electrical connector and wire harness retainer.
