Cylinder Head — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4632

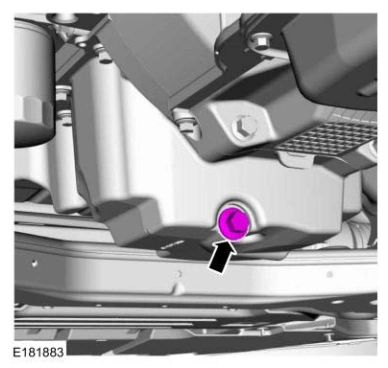

Cylinder Head — original illustration 1, reference 4632Original colors & callouts · Select to enlarge

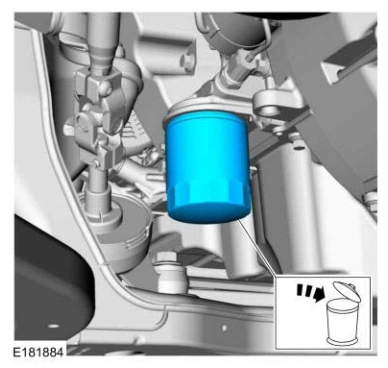

19. Remove and discard the engine oil filter.

Use the General Equipment: Oil Drain Equipment

Cylinder Head — original illustration 2, reference 4632Original colors & callouts · Select to enlarge

NOTE: Lubricate the engine oil filter seal with clean engine oil.

20. Install a new engine oil filter.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 180°

Ford_Mustang_all_2015-2017.pdf · source reference 4632
