Engine Front Cover — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4635

severe engine damage can occur.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2. Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE - 2.3L EcoBoost (231kW/314PS).

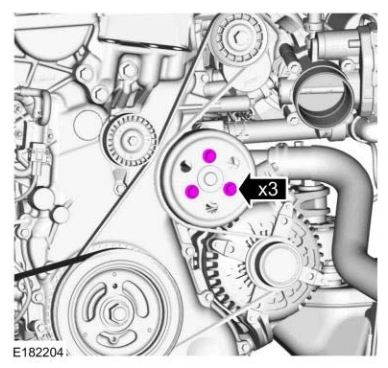

3. Loosen the coolant pump pulley bolts.

Engine Front Cover — original illustration 1, reference 4635Original colors & callouts · Select to enlarge

4. Remove the crankshaft front seal. Refer to: Crankshaft Front Seal .

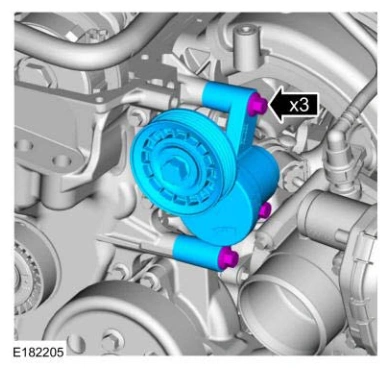

5. Remove the bolts and the accessory drive belt tensioner.

Engine Front Cover — original illustration 2, reference 4635Original colors & callouts · Select to enlarge
