NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the valve cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.

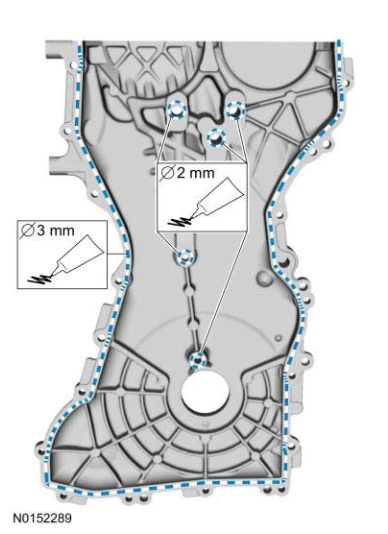

1. Apply beads of silicone sealant that are 2 mm (0.078 in) around the inner bolt holes.
Material
: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
Apply a bead of silicone sealant that are 3 mm (0.00 in) on the edge of the engine front cover.
Material
: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
NOTE: The engine front cover must be secured within 10 minutes of silicone sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.
2. Apply beads of silicone gasket and sealant that are 2 mm (0.078 in) in diameter and 5 mm (0.19 in) in length across the cylinder head and cylinder block joint areas.
Material
: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
