Engine Front Cover — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,639HTML edition
← Chapter contentsManual collection

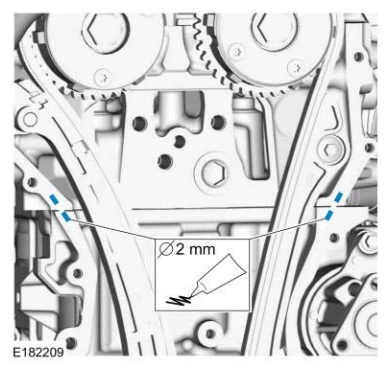

Engine Front Cover — original illustration 1, reference 4639Original colors & callouts · Select to enlarge

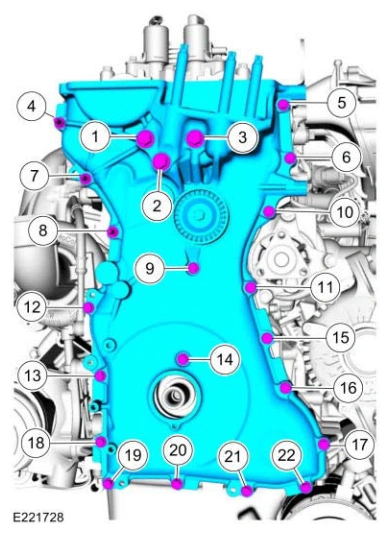

3. Install the engine front cover and the bolts.

Torque

Bolts 1 - 3: 35 lb.ft (48 Nm)

Bolts 4 - 22: 89 lb.in (10 Nm)

Engine Front Cover — original illustration 2, reference 4639Original colors & callouts · Select to enlarge

4. Position the vacuum valve and install the nuts.

Torque

: 89 lb.in (10 Nm)
