Engine Mount LH — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4642

	303-050 (T70P-6000) Lifting Bracket, Engine
Engine Mount LH — original illustration 2, reference 4642Original colors & callouts · Select to enlarge	303-F072 Support Bar, Engine

Engine Mount LH — original illustration 1, reference 4642Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > ENGINE MOUNT LH > REMOVAL

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

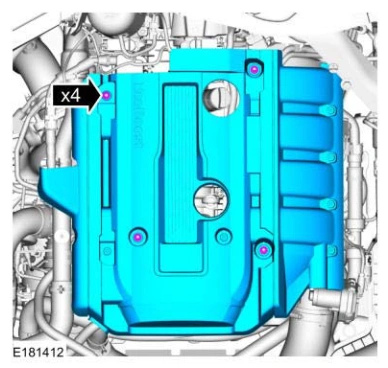

2. Remove the nuts and the engine appearance cover.

Engine Mount LH — original illustration 3, reference 4642Original colors & callouts · Select to enlarge

3. Install the special tool on the LH side of the cylinder head. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
