Engine Mount LH — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,645HTML edition
← Chapter contentsManual collection

10. Install the special tool and raise the engine 26 mm (1.0 in).

Use Special Service Tool: 303-F072 Support Bar, Engine.

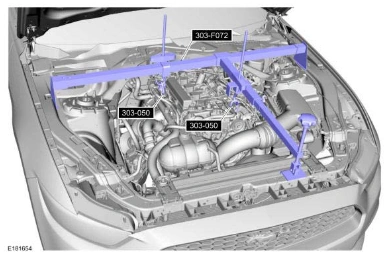

Engine Mount LH — original illustration 1, reference 4645Original colors & callouts · Select to enlarge

NOTE: The underbody shield will need to be remove for access to the LH front engine mount bracket bolt.

11. Remove the screws, bolts and the underbody shield.

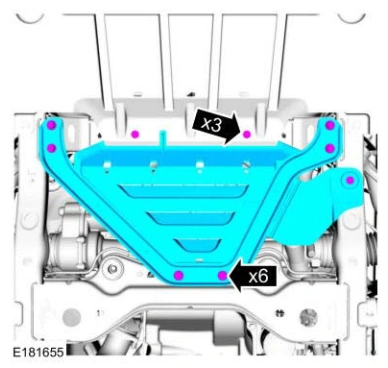

Engine Mount LH — original illustration 2, reference 4645Original colors & callouts · Select to enlarge

12. Detach the wire harness retainer from the LH engine mount bracket stud bolt.
