Engine Mount LH — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,646HTML edition
← Chapter contentsManual collection
Engine Mount LH — original illustration 1, reference 4646Original colors & callouts · Select to enlarge

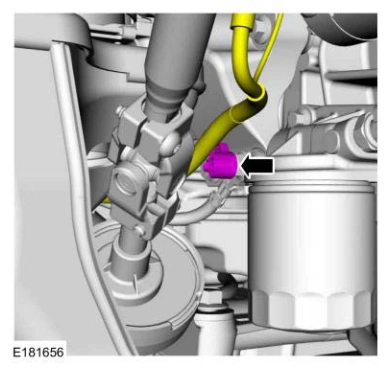

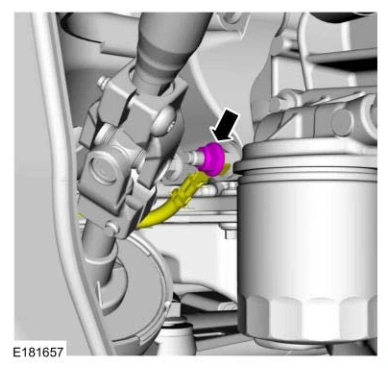

13. Remove the nut and ground wire from the LH engine mount bracket stud bolt.

Engine Mount LH — original illustration 2, reference 4646Original colors & callouts · Select to enlarge

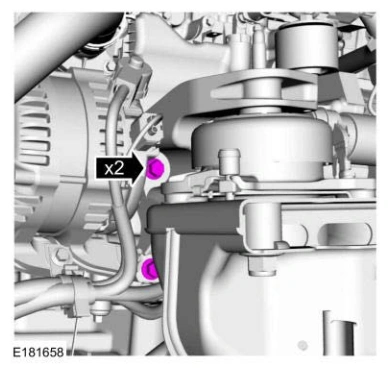

14. Remove the bolts for the engine mount bracket.

Engine Mount LH — original illustration 3, reference 4646Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4646
