Engine Mount LH — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,648HTML edition

← Chapter contents Manual collection

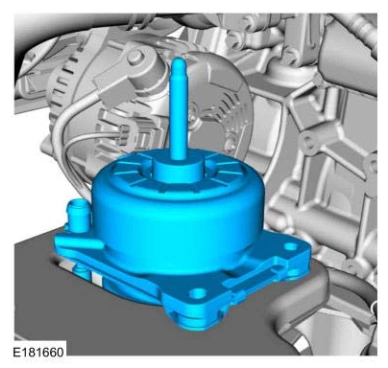

Engine Mount LH — original illustration 1, reference 4648Original colors & callouts · Select to enlarge

NOTE: Do not install the engine mount bracket bolts at this time.

2. Install the engine mount bracket.

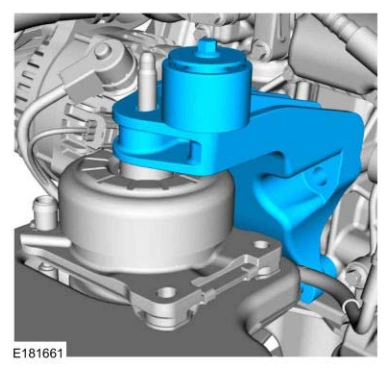

Engine Mount LH — original illustration 2, reference 4648Original colors & callouts · Select to enlarge

3. Install the engine mount bolts.

Torque

: 52 lb.ft (70 Nm)
