Engine Mount LH — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,651HTML edition
← Chapter contentsManual collection

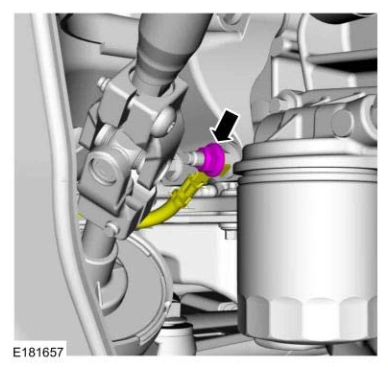

Engine Mount LH — original illustration 1, reference 4651Original colors & callouts · Select to enlarge

8. Attach the wire harness retainer to the LH engine mount bracket stud bolt.

Engine Mount LH — original illustration 2, reference 4651Original colors & callouts · Select to enlarge

9.

1. Install the underbody shield and the bolts.

Torque

: 46 lb.ft (63 Nm)

2. Install the underbody shield screws.
