Engine Mount LH — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4653

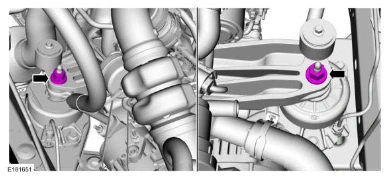

Torque

: 92 lb.ft (125 Nm)

Engine Mount LH — original illustration 1, reference 4653Original colors & callouts · Select to enlarge

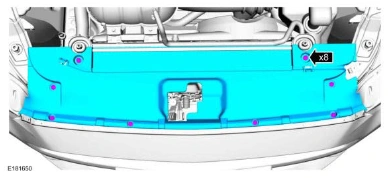

13. Install the radiator top shield and the retainers.

Engine Mount LH — original illustration 2, reference 4653Original colors & callouts · Select to enlarge

14. Connect the battery ground. Refer to: Battery Disconnect and Connect .

15. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

Engine Mount LH — original illustration 3, reference 4653Original colors & callouts · Select to enlarge

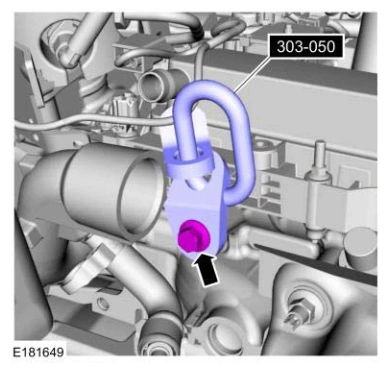

16. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
