Engine Mount RH — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4655

Engine Mount RH — original illustration 1, reference 4655Original colors & callouts · Select to enlarge

303-F072 Support Bar, Engine

REMOVAL AND INSTALLATION > ENGINE MOUNT RH > REMOVAL

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

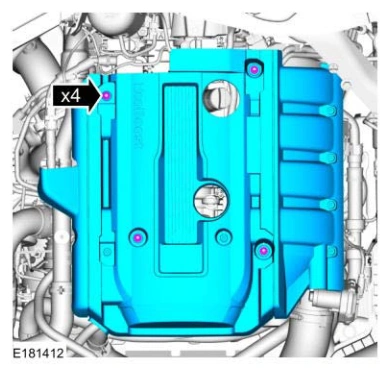

2. Remove the nuts and the engine appearance cover.

Engine Mount RH — original illustration 2, reference 4655Original colors & callouts · Select to enlarge

3. Install the special tool on the LH side of the cylinder head.

Install Special Service Tool: (T70P-6000) Lifting Bracket, Engine.
