Engine Mount RH — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,657HTML edition
← Chapter contentsManual collection
Engine Mount RH — original illustration 1, reference 4657Original colors & callouts · Select to enlarge

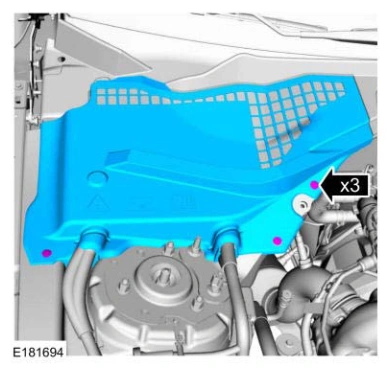

6. Remove the retainers and the radiator top shield.

Engine Mount RH — original illustration 2, reference 4657Original colors & callouts · Select to enlarge

NOTE: Both the engine mount nuts must be removed to allow the engine to be raised.

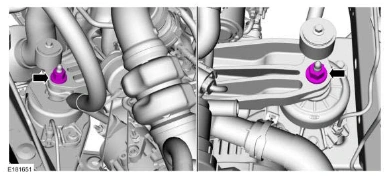

7. Remove the RH and LH engine mount nuts.

Engine Mount RH — original illustration 3, reference 4657Original colors & callouts · Select to enlarge

8. Disconnect the vacuum tube from the RH engine mount.

Ford_Mustang_all_2015-2017.pdf · source reference 4657

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
