Engine Mount RH — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,656HTML edition
← Chapter contentsManual collection
Engine Mount RH — original illustration 1, reference 4656Original colors & callouts · Select to enlarge

NOTE: Coolant tube removed for clarity.

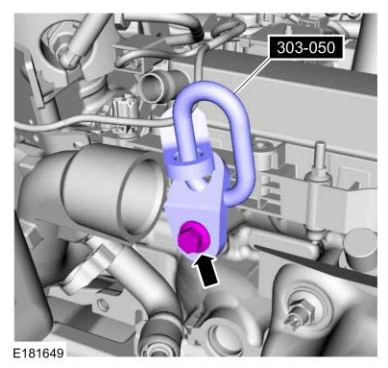

4. Install the special tool on the RH side of the cylinder head.

Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

Engine Mount RH — original illustration 2, reference 4656Original colors & callouts · Select to enlarge

5. Remove the retainers and the battery cover.
