Engine Mount RH — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,658HTML edition
← Chapter contentsManual collection

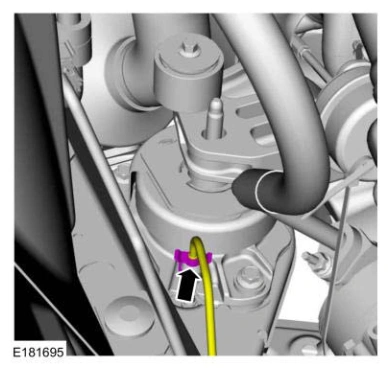

Engine Mount RH — original illustration 1, reference 4658Original colors & callouts · Select to enlarge

9. Remove the bolts for the engine mount.

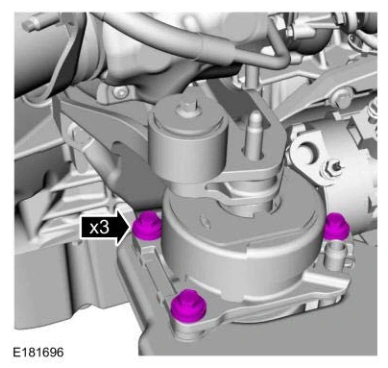

Engine Mount RH — original illustration 2, reference 4658Original colors & callouts · Select to enlarge

10. Install the special tool and raise the engine 26 mm (1.0 in).

Use Special Service Tool: 303-F072 Support Bar, Engine.

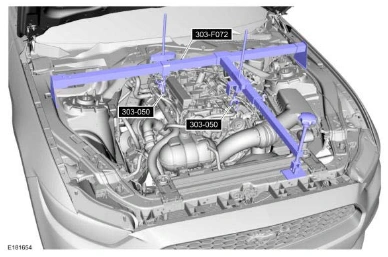

Engine Mount RH — original illustration 3, reference 4658Original colors & callouts · Select to enlarge
