Engine Mount RH — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,661HTML edition
← Chapter contentsManual collection

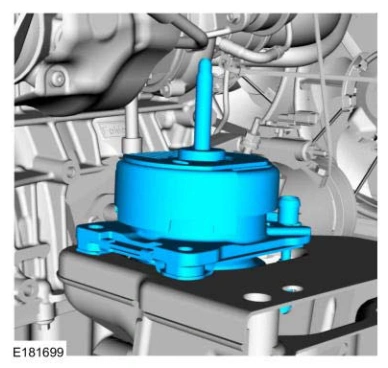

Engine Mount RH — original illustration 1, reference 4661Original colors & callouts · Select to enlarge

NOTE: Do not install the engine mount bracket bolts at this time.

2. Install the engine mount bracket.

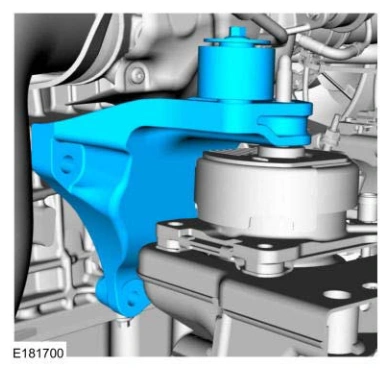

Engine Mount RH — original illustration 2, reference 4661Original colors & callouts · Select to enlarge

3. Install the engine mount bolts.

Torque

: 52 lb.ft (70 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 4661
