Engine Mount RH — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,663HTML edition
← Chapter contentsManual collection

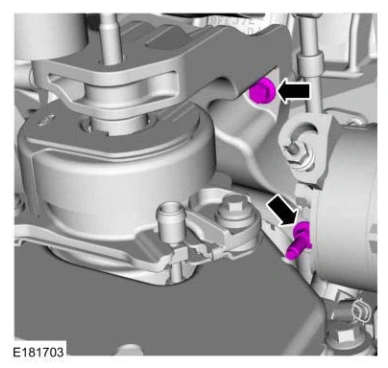

Engine Mount RH — original illustration 1, reference 4663Original colors & callouts · Select to enlarge

6. Tighten the bolts for the engine mount bracket.

Torque

: 41 lb.ft (55 Nm)

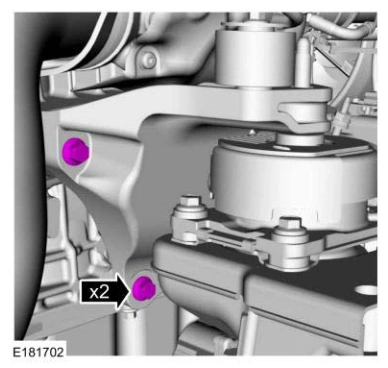

Engine Mount RH — original illustration 2, reference 4663Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

7. Position the automatic transmission tube bracket and install the nut.

Torque

: 35 lb.ft (48 Nm)
