Engine Mount RH — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,664HTML edition
← Chapter contentsManual collection
Engine Mount RH — original illustration 1, reference 4664Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

8. Lower the engine 26 mm (1.0 in) and remove the special tool.

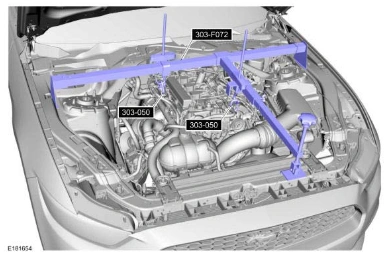

Remove Special Service Tool: 303-F072 Support Bar, Engine.

Engine Mount RH — original illustration 2, reference 4664Original colors & callouts · Select to enlarge

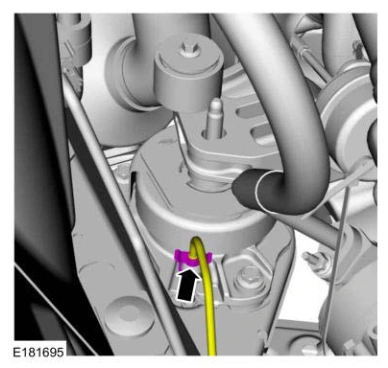

9. Connect the vacuum tube to the RH engine mount.

Engine Mount RH — original illustration 3, reference 4664Original colors & callouts · Select to enlarge
