Engine Mount RH — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,662HTML edition

← Chapter contents Manual collection

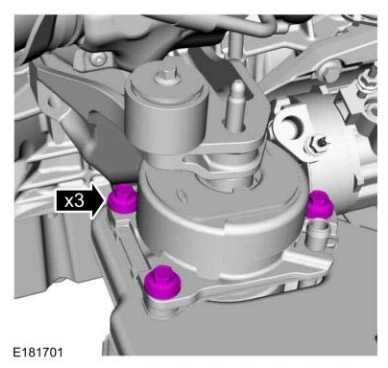

Engine Mount RH — original illustration 1, reference 4662Original colors & callouts · Select to enlarge

4. Install the bolts for the engine mount bracket finger tight.

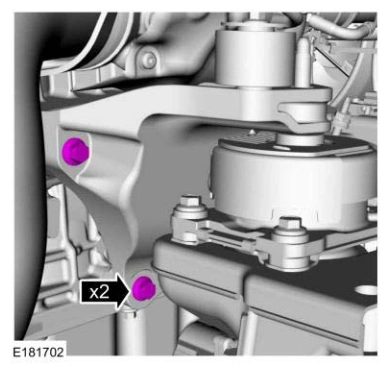

Engine Mount RH — original illustration 2, reference 4662Original colors & callouts · Select to enlarge

5. Install the bolt, stud bolt for the engine mount bracket.

Torque

: 41 lb.ft (55 Nm)
