Engine Mount RH — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,665HTML edition
← Chapter contentsManual collection

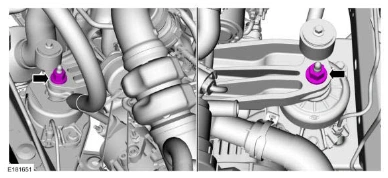

10. Install the RH and LH engine mount nuts.

Torque

: 92 lb.ft (125 Nm)

Engine Mount RH — original illustration 1, reference 4665Original colors & callouts · Select to enlarge

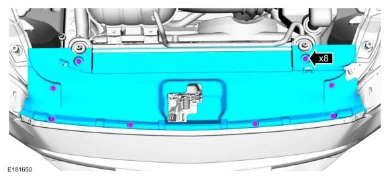

11. Install the radiator top shield and the retainers.

Engine Mount RH — original illustration 2, reference 4665Original colors & callouts · Select to enlarge

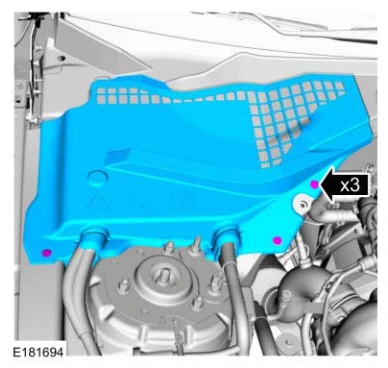

12. Install the battery cover and the retainers.

Engine Mount RH — original illustration 3, reference 4665Original colors & callouts · Select to enlarge

13. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
