Flexplate — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,668HTML edition
← Chapter contentsManual collection

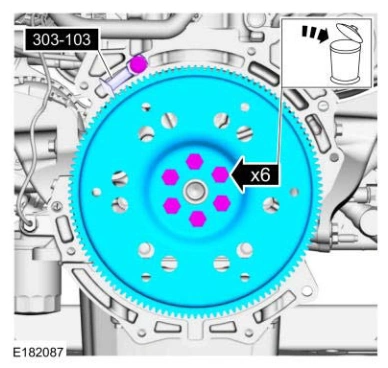

Flexplate — original illustration 1, reference 4668Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > FLEXPLATE > INSTALLATION

1.

NOTE: Special bolts are used for installation. Do not use standard bolts.

Install the flexplate and the new bolts.

Torque

:Stage 1: 37 lb.ft (50 Nm)

Stage 2: 59 lb.ft (80 Nm)

Stage 3: 83 lb.ft (112 Nm)

Remove Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

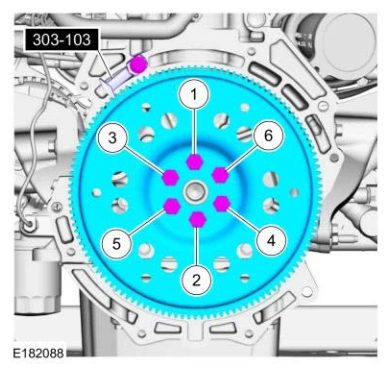

Flexplate — original illustration 2, reference 4668Original colors & callouts · Select to enlarge

2.

Ford_Mustang_all_2015-2017.pdf · source reference 4668
