Engine Mount RH — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,666HTML edition

← Chapter contents Manual collection

Engine Mount RH — original illustration 1, reference 4666Original colors & callouts · Select to enlarge

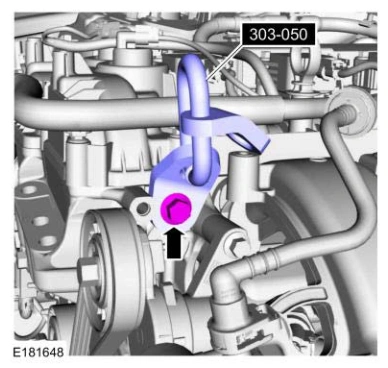

14. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

Engine Mount RH — original illustration 2, reference 4666Original colors & callouts · Select to enlarge

15. Install the engine appearance cover and the nuts.

Torque

: 80 lb.in (9 Nm)
