Engine Mount RH — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,659HTML edition
← Chapter contentsManual collection

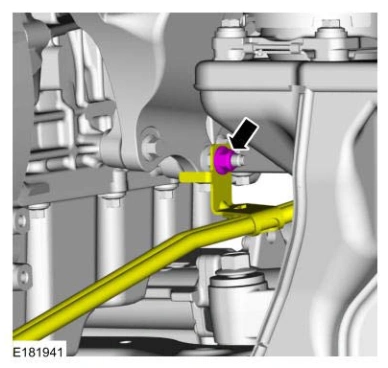

11. Remove the nut from the engine mount bracket stud bolt and position the automatic transmission tube bracket aside.

Engine Mount RH — original illustration 1, reference 4659Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

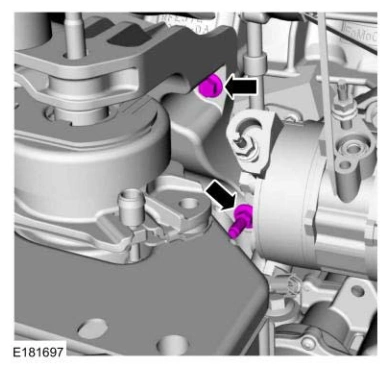

12. Remove the bolt, stud bolt for the engine mount bracket.

Engine Mount RH — original illustration 2, reference 4659Original colors & callouts · Select to enlarge

13. Remove the bolts and the engine mount bracket.
