Engine Mount LH — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,652HTML edition
← Chapter contentsManual collection

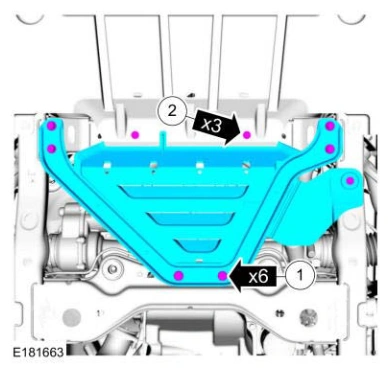

Engine Mount LH — original illustration 1, reference 4652Original colors & callouts · Select to enlarge

10. Lower the engine 26 mm (1.0 in) and remove the special tool. Remove Special Service Tool: 303-F072 Support Bar, Engine.

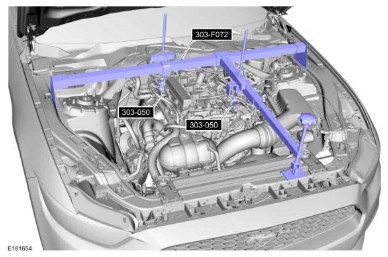

Engine Mount LH — original illustration 2, reference 4652Original colors & callouts · Select to enlarge

11. Connect the vacuum tube to the LH engine mount.

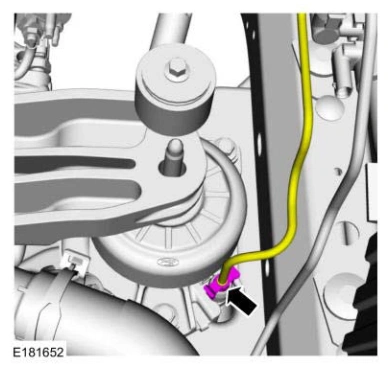

Engine Mount LH — original illustration 3, reference 4652Original colors & callouts · Select to enlarge

12. Install the RH and LH engine mount bracket nuts.

Ford_Mustang_all_2015-2017.pdf · source reference 4652
