Engine Mount LH — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,650HTML edition
← Chapter contentsManual collection

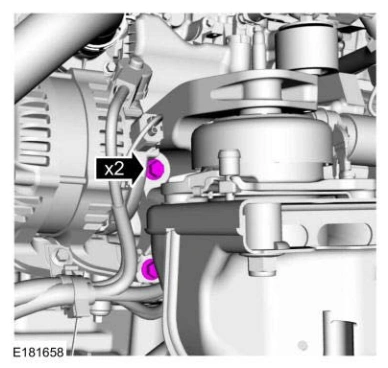

Engine Mount LH — original illustration 1, reference 4650Original colors & callouts · Select to enlarge

6. Tighten the bolt, stud bolt for the engine mount bracket.

Torque

: 41 lb.ft (55 Nm)

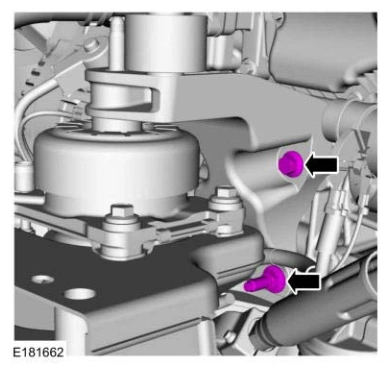

Engine Mount LH — original illustration 2, reference 4650Original colors & callouts · Select to enlarge

7. Install the ground wire and nut to the LH engine mount bracket stud bolt.

Torque

: 35 lb.ft (48 Nm)
