Engine Mount LH — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,647HTML edition
← Chapter contentsManual collection

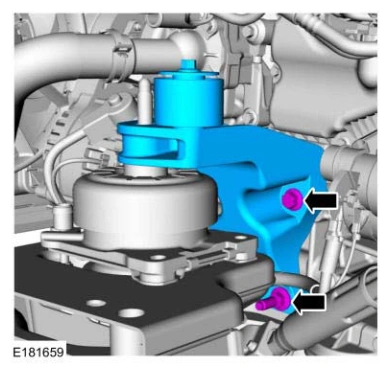

15. Remove the bolt, stud bolt and the engine mount bracket.

Engine Mount LH — original illustration 1, reference 4647Original colors & callouts · Select to enlarge

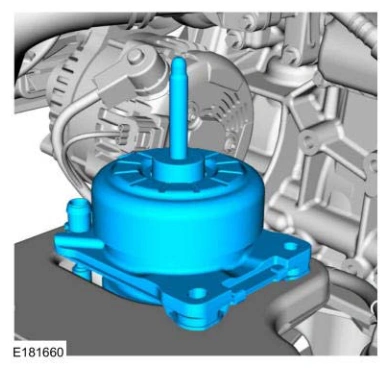

16. Remove the engine mount.

Engine Mount LH — original illustration 2, reference 4647Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > ENGINE MOUNT LH > INSTALLATION

NOTE: Do not install the engine mount bolts at this time.

1. Install the engine mount.
