Engine Mount LH — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,644HTML edition
← Chapter contentsManual collection

NOTE: Both the engine mount nuts must be removed to allow the engine to be raised.

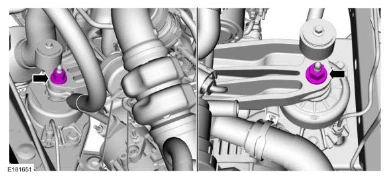

7. Remove the RH and LH engine mount bracket nuts.

Engine Mount LH — original illustration 1, reference 4644Original colors & callouts · Select to enlarge

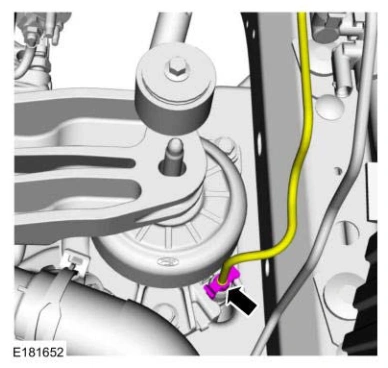

8. Disconnect the vacuum tube from the LH engine mount.

Engine Mount LH — original illustration 2, reference 4644Original colors & callouts · Select to enlarge

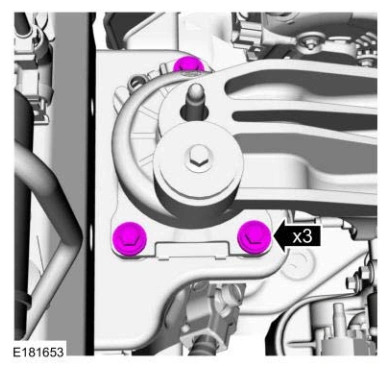

9. Remove the bolts for the engine mount.

Engine Mount LH — original illustration 3, reference 4644Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4644
